EB2 & VM1 Electric Brake Controller Wiring Diagrams

Trailer Mounted Wiring Diagram

Auxiliary connection is optional, it may be connected to any 12v to 24v constant power source or left unconnected.
Break away systems may be added to the service brake circuit.
Elecbrakes is designed to operate 1 to 2 braked axles.

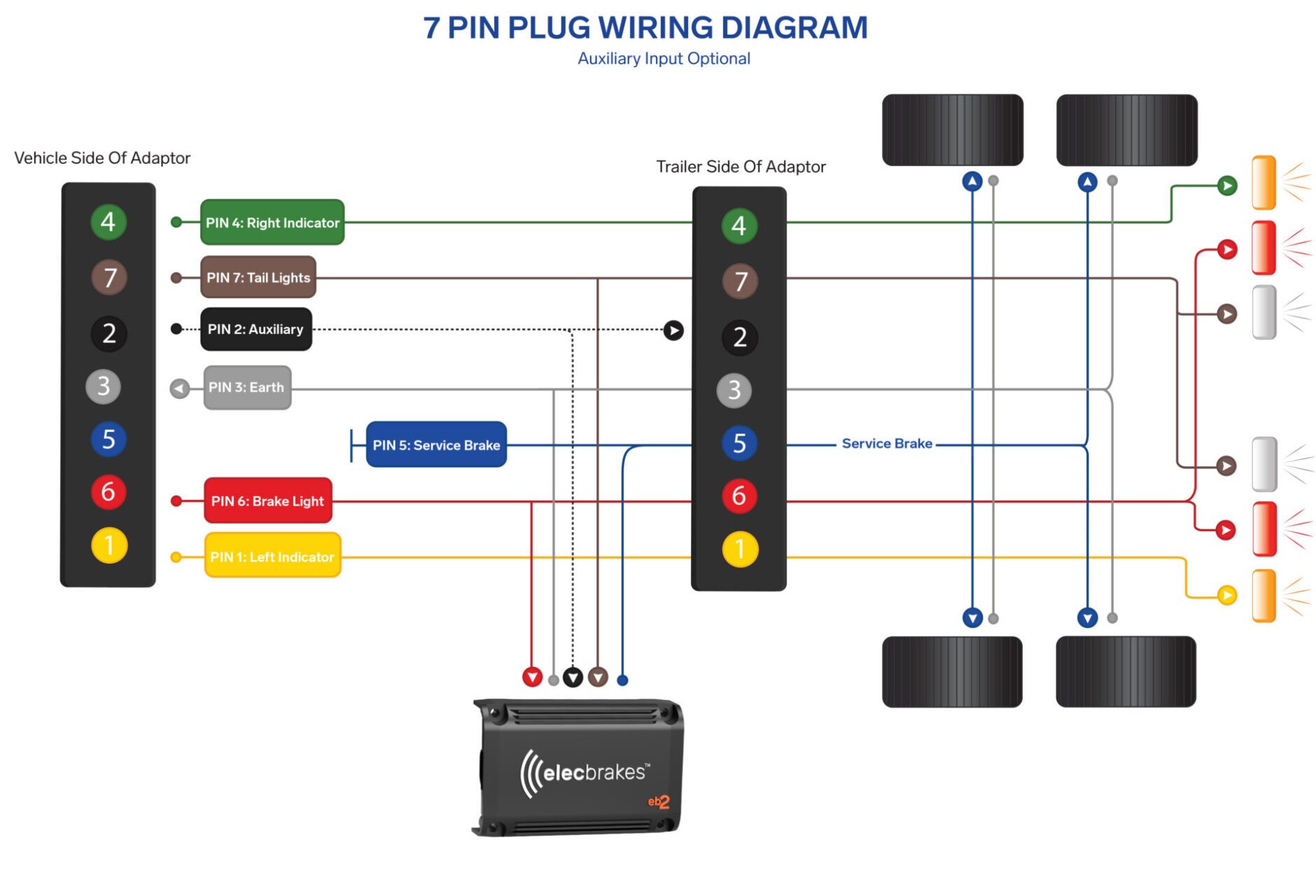

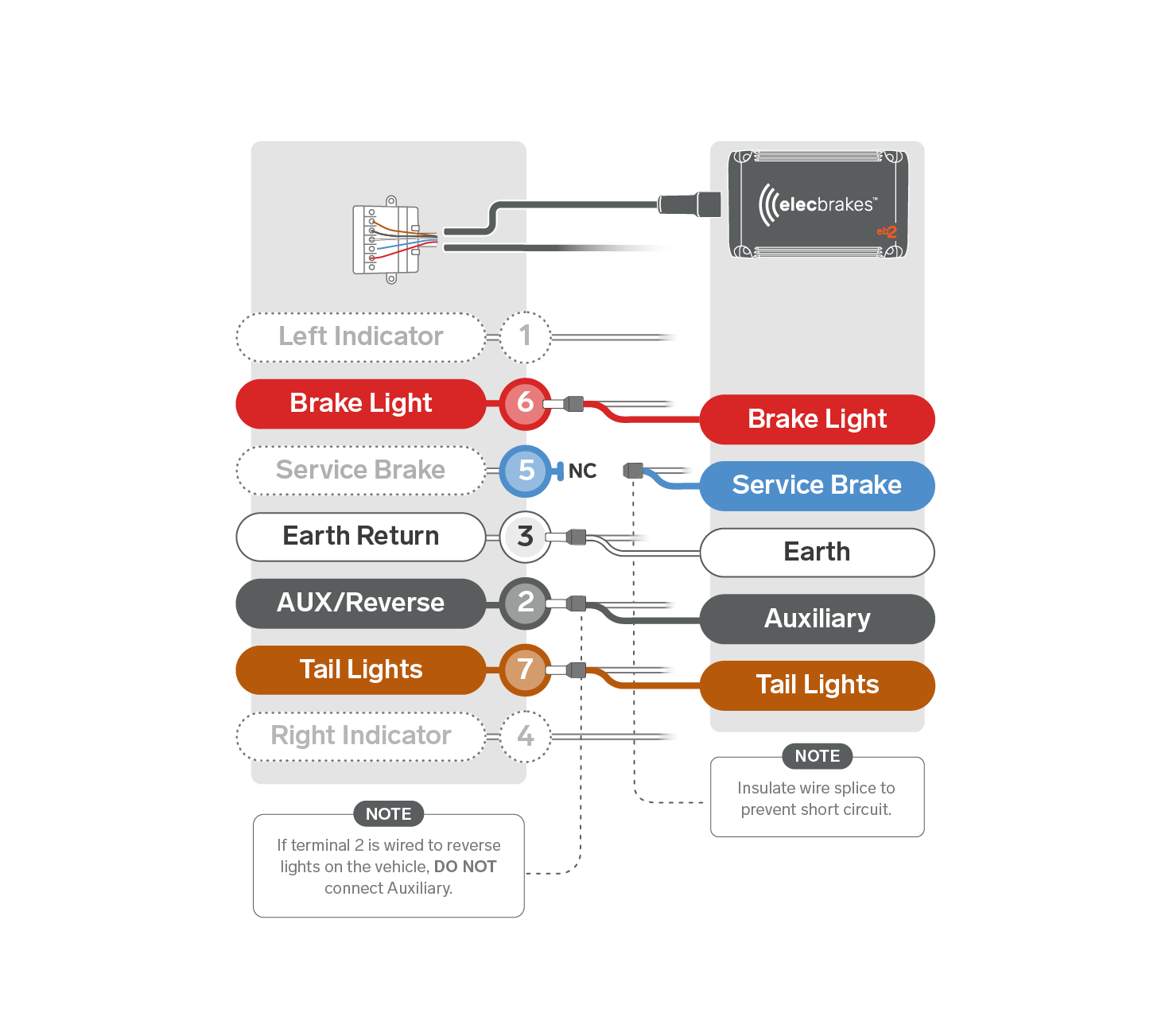

7-pin-flat-7-pin-flat-1 — EB2 7 Pin Plug Wiring Diagram

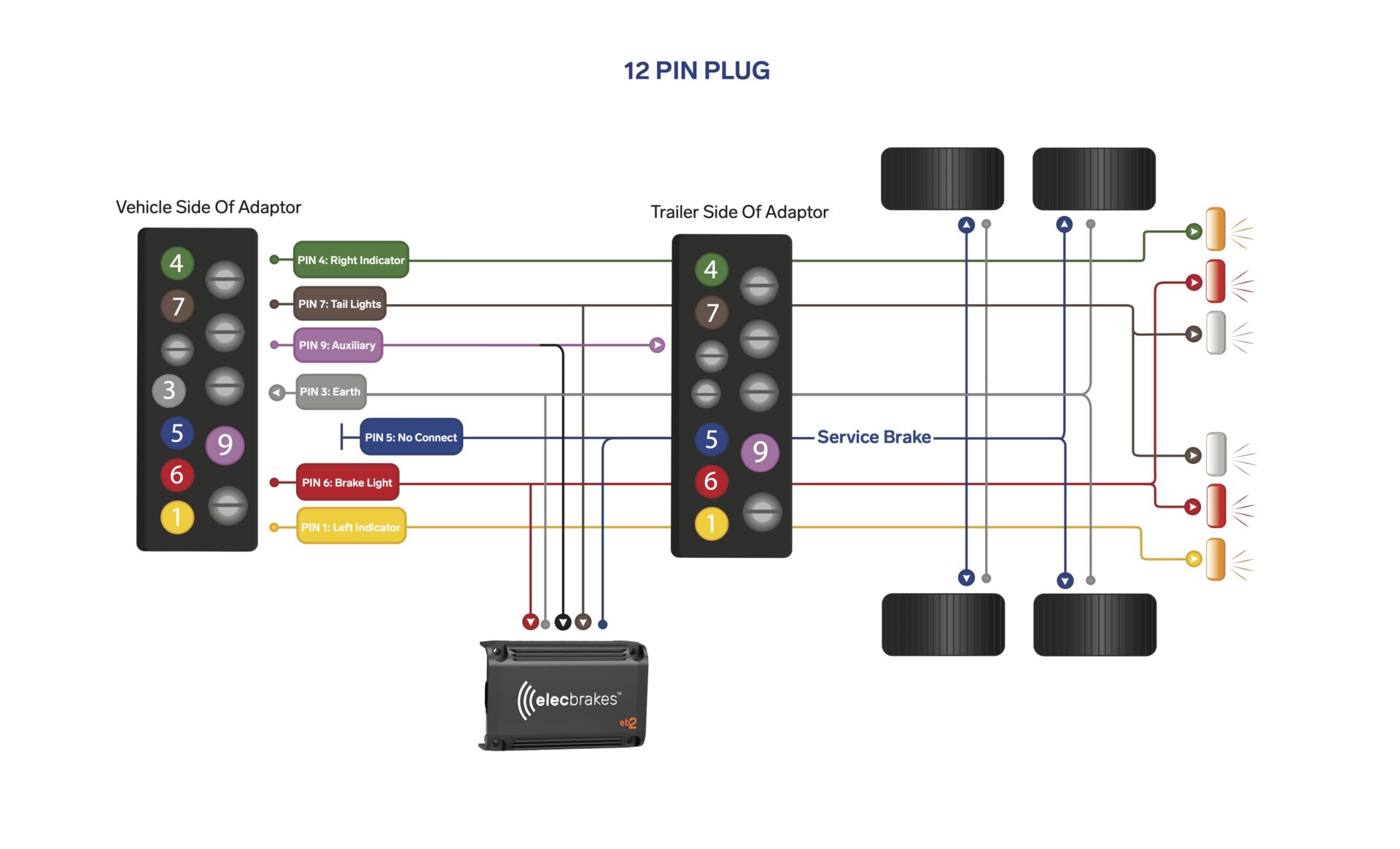

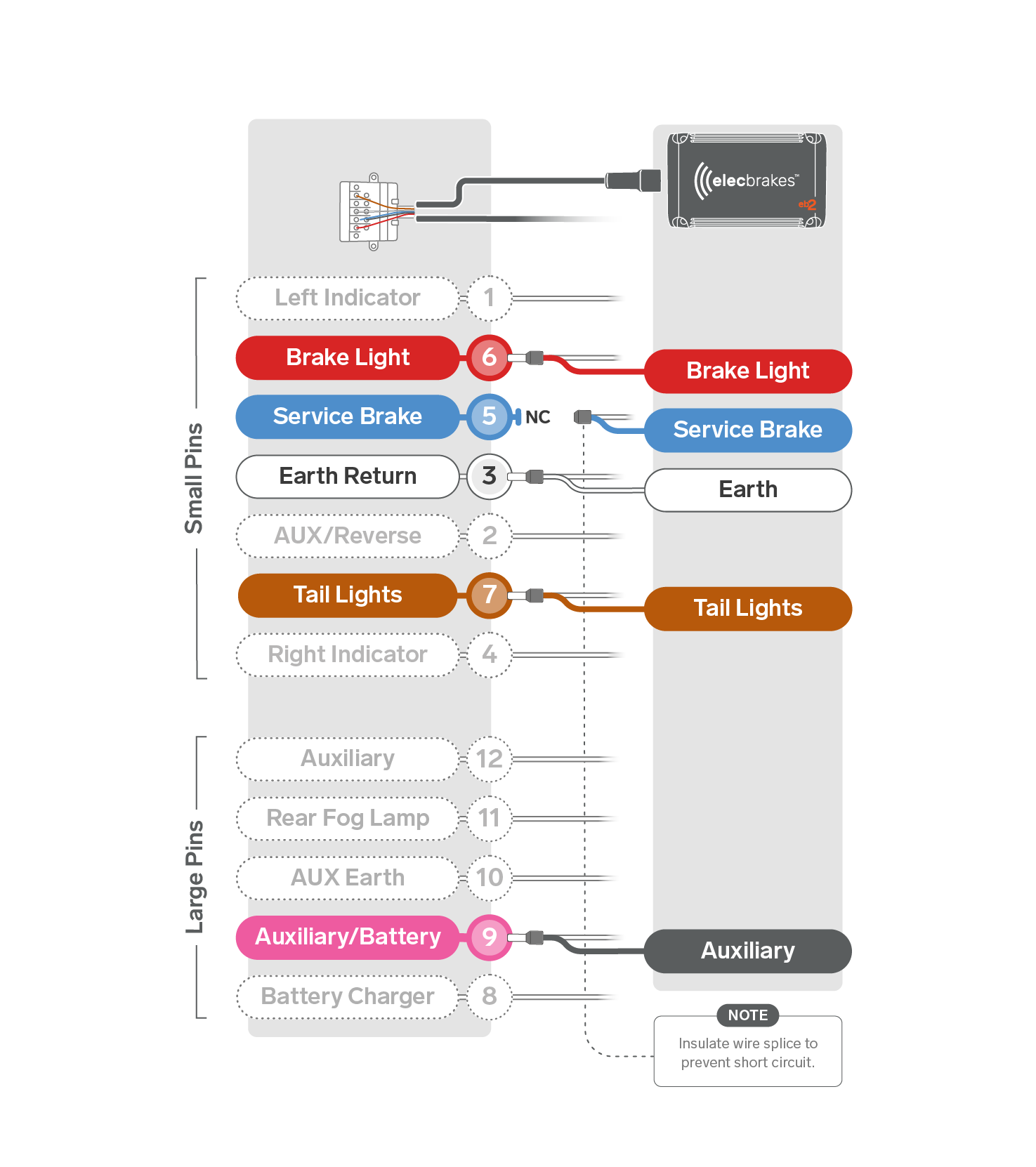

12-pin-plug-aux-4-1 — EB2 12 Pin Plug Wiring Diagram

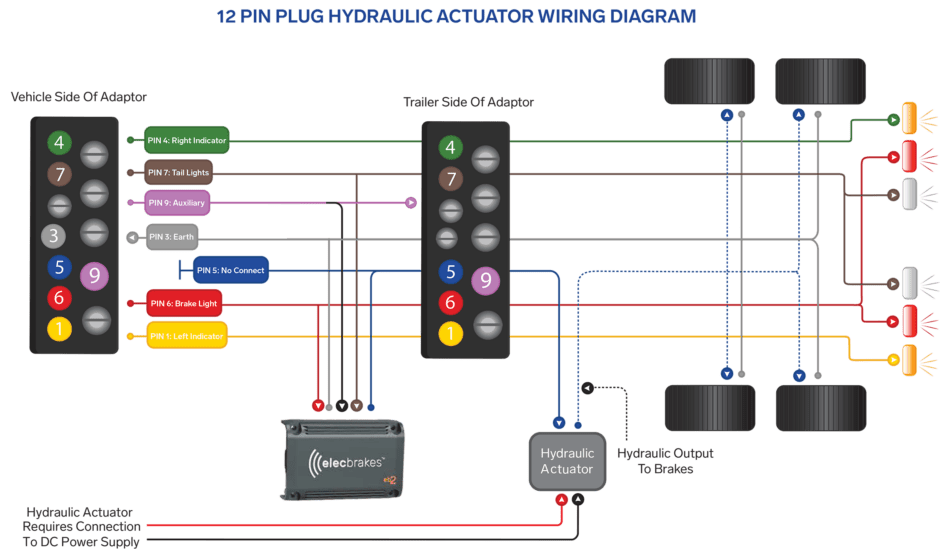

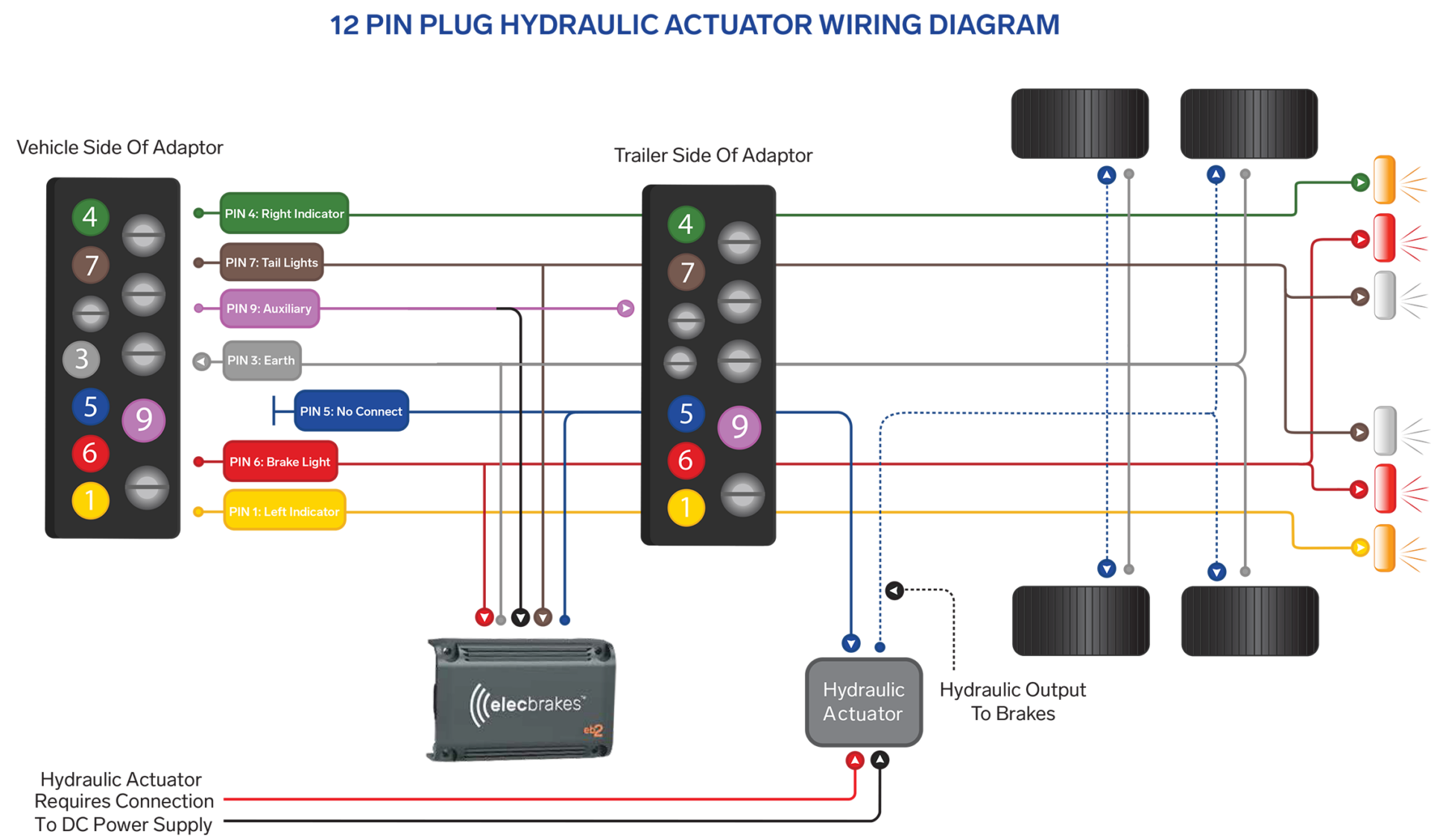

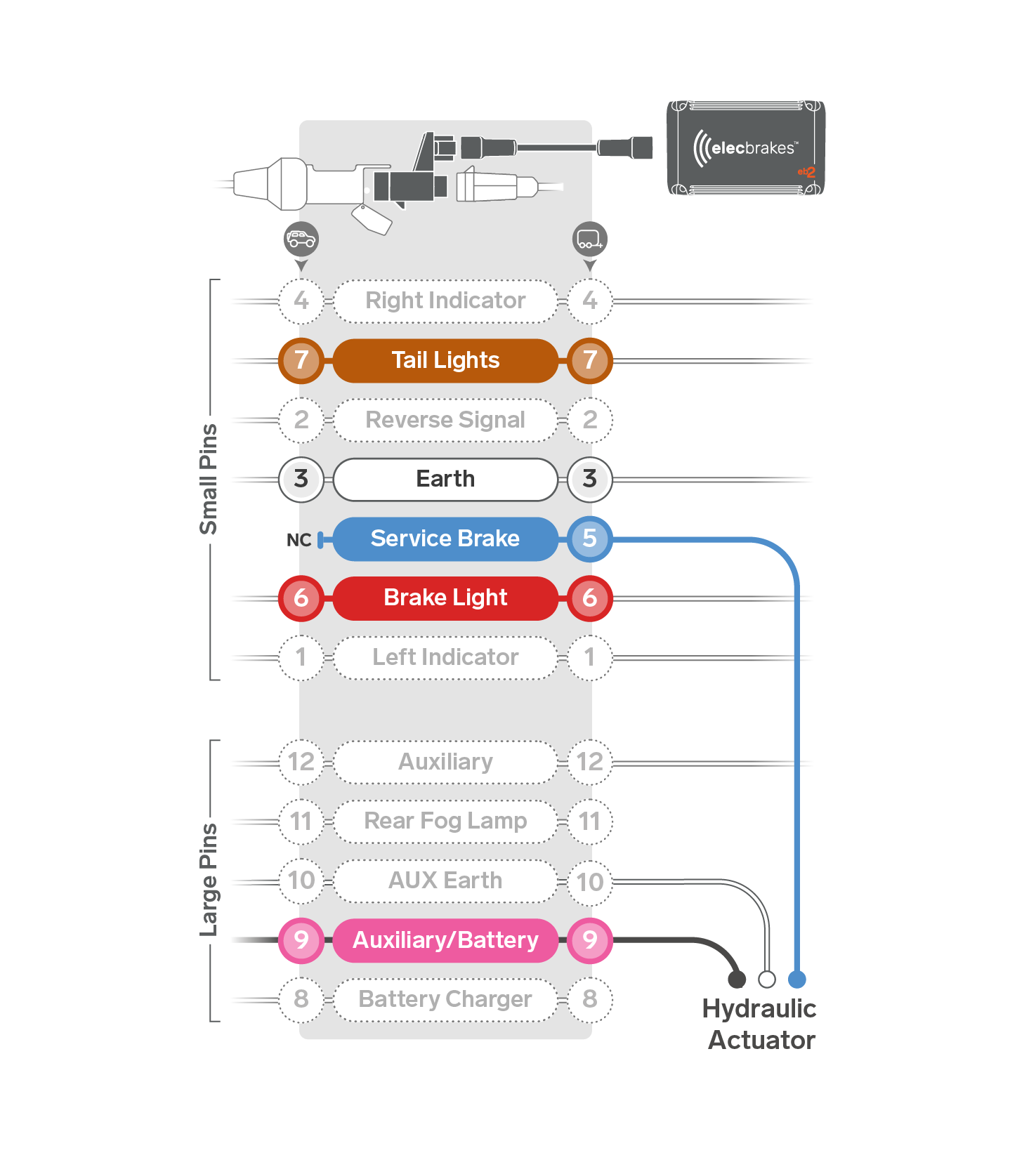

12 pin plug HYD-4 v2 — EB2 12 Pin Plug Hydraulic Actuator Wiring Diagram

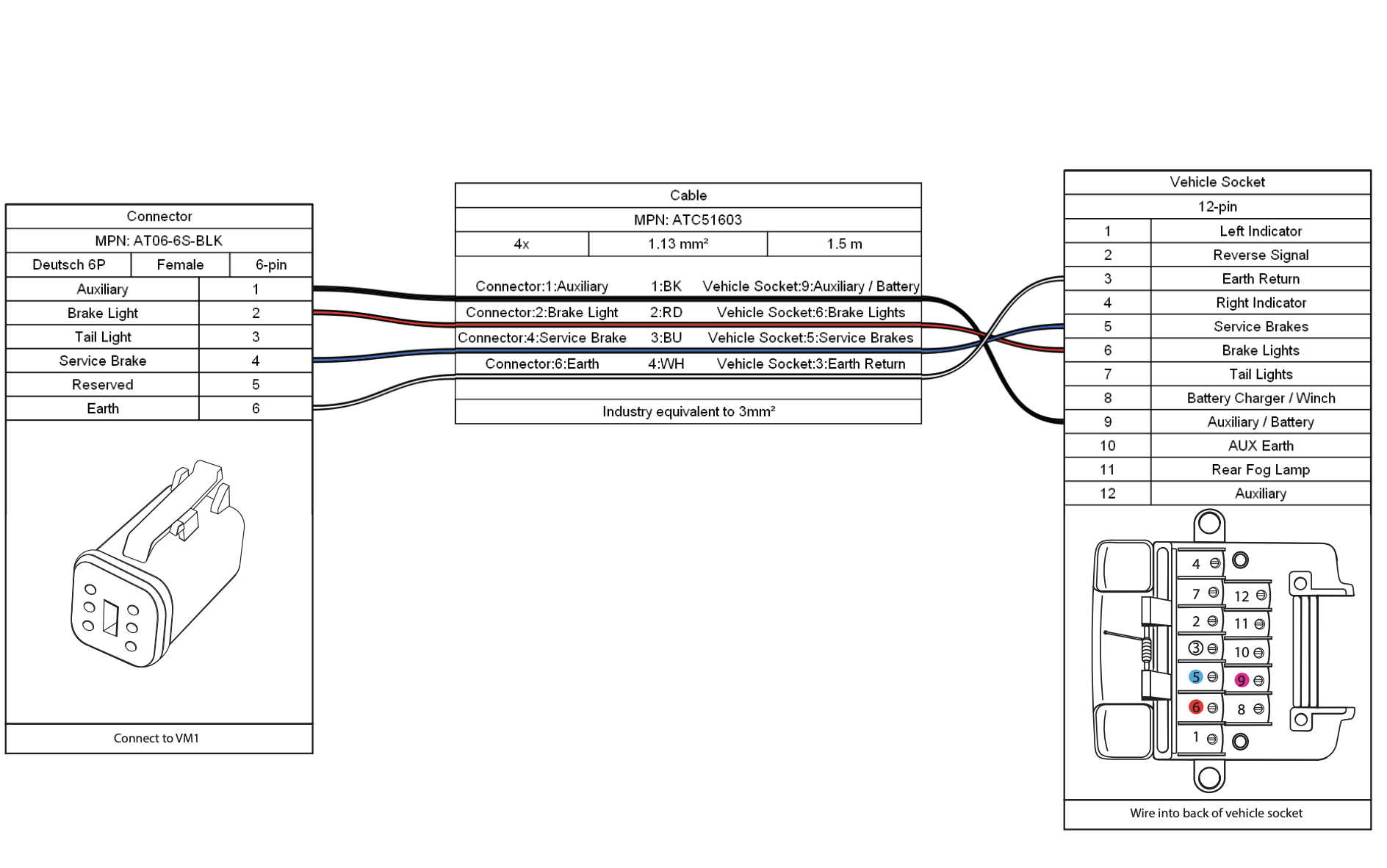

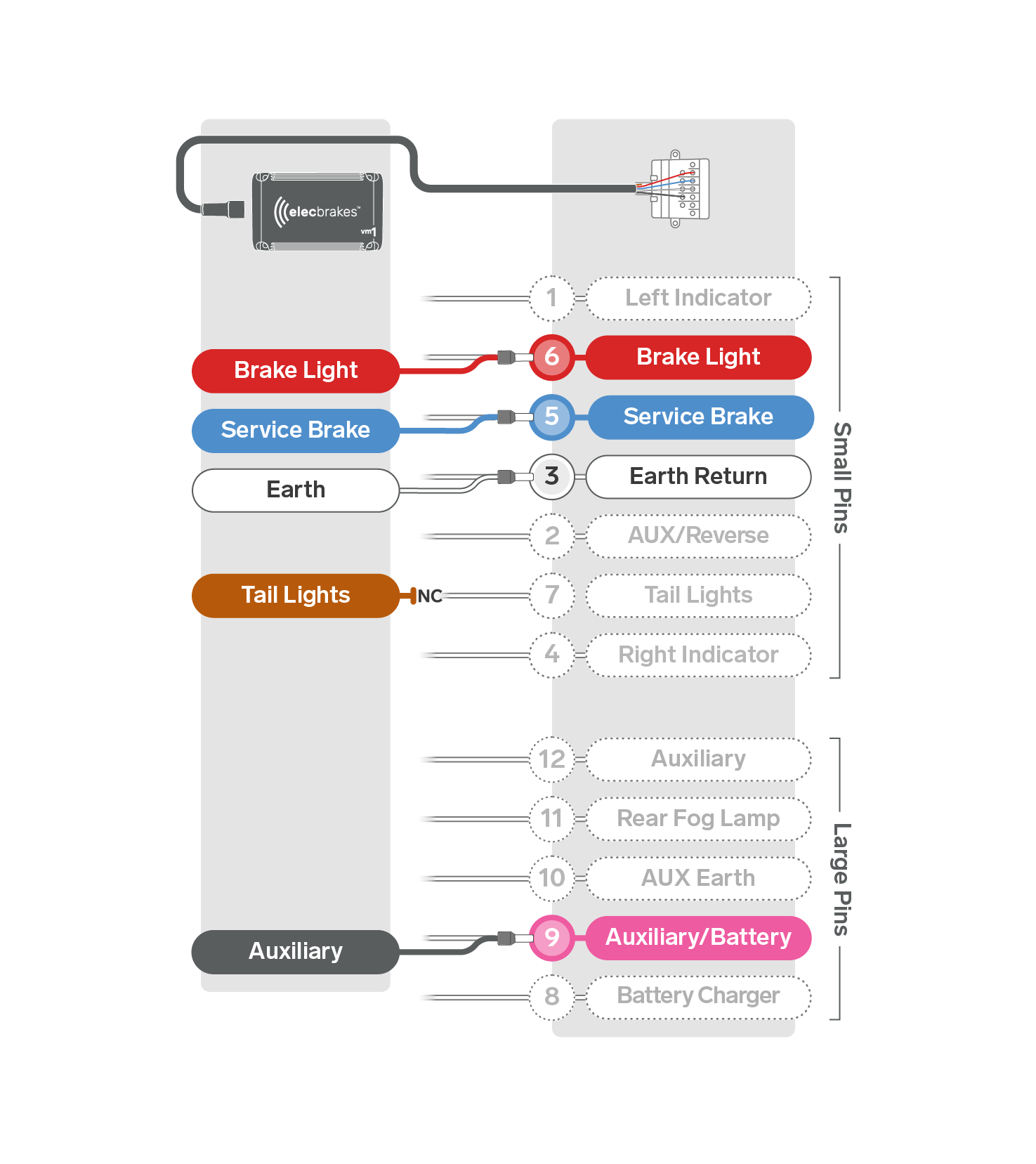

Vehicle Mounted Wiring Diagram

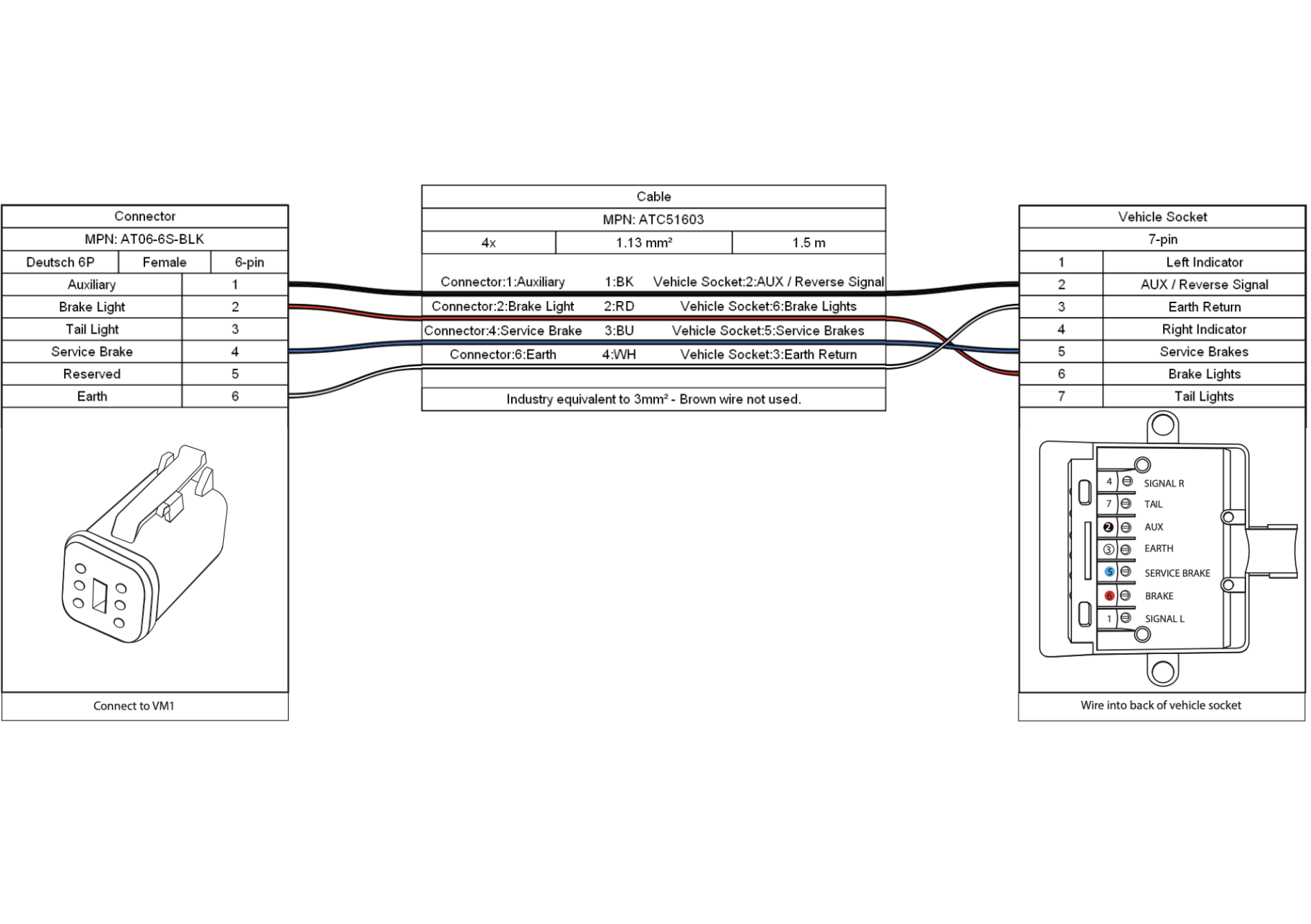

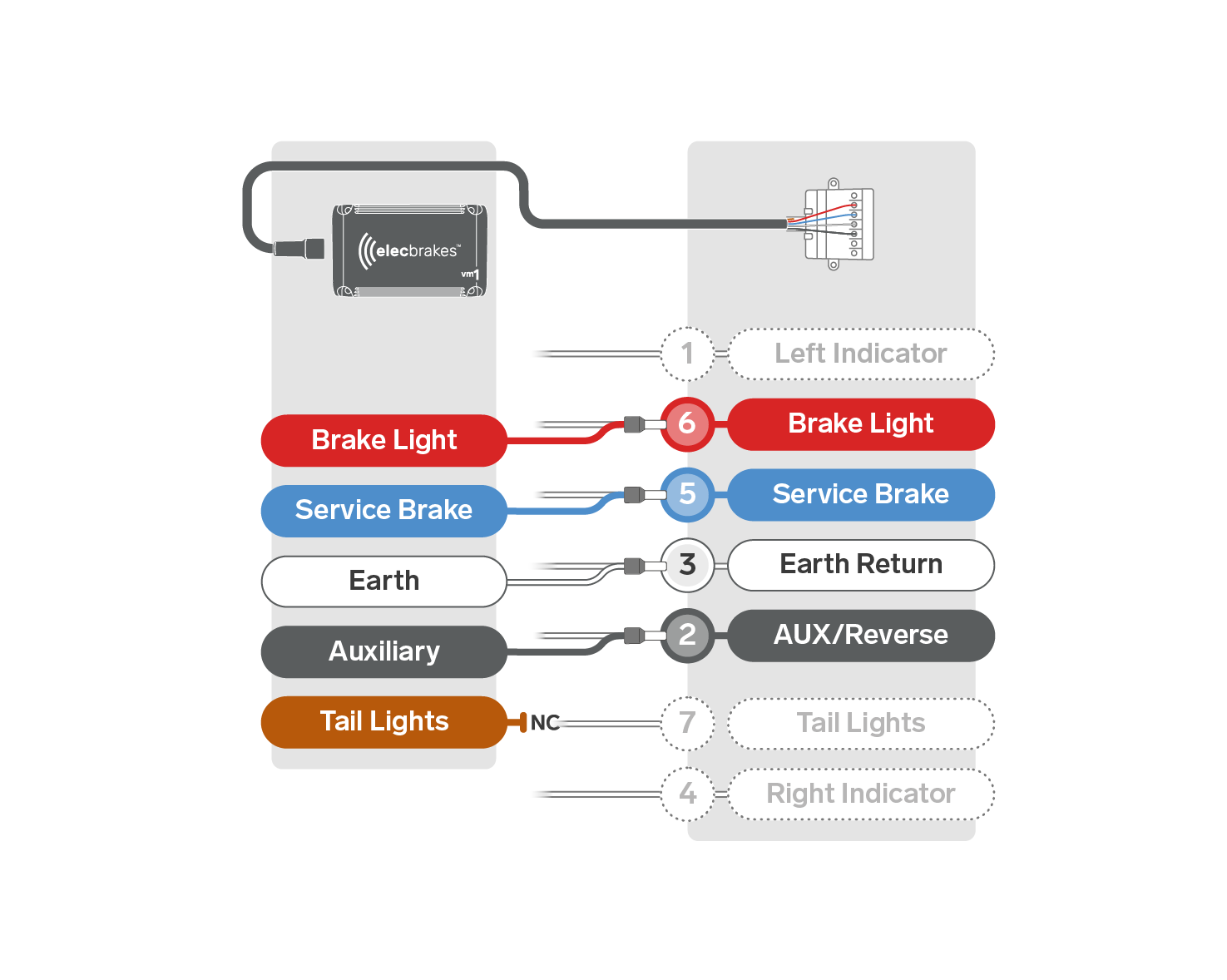

VM1 7 Pin Wiring DIagram — VM1 7 Pin Wiring Diagram

EB2 vs VM1: Which Brake Controller?
